As artificial intelligence (AI) and machine learning (ML) workloads scale exponentially, data center architects across North America and Europe face unprecedented physical layer challenges. Large Language Models (LLMs) like GPT-4, Llama, and modern generative AI frameworks require massive computational power, which is typically delivered through high-density GPU clusters powered by NVIDIA accelerators.
While attention often centers on GPU processing power and memory bandwidth, the underlying network infrastructure is the true bottleneck of modern supercomputing. Whether building a legacy training pod or a cutting-edge high-performance computing (HPC) fabric, understanding how many optical modules and cables are required—and selecting the right form factors—is crucial for project success. This comprehensive guide breaks down the optical connectivity requirements for NVIDIA A100 and H100 AI clusters.
Architectural Evolution: From A100 to H100 Clusters
To calculate optical module quantities accurately, we must first examine how networking architectures have evolved between generations.
NVIDIA A100 Clusters (Legacy / Mature Deployments)
Typically built around InfiniBand HDR (200Gb/s) or 100GbE/200GbE Ethernet fabrics, A100-based systems like the DGX SuperPOD relied heavily on robust, mature optical standards. In these environments, rack-level and switch-to-switch interconnects heavily utilized 100G QSFP28 modules alongside active optical cables (AOCs) and breakout configurations. For shorter intra-rack connections, multimode optics such as 100G SR4 transceivers paired with MTP/MPO fiber cabling served as the cost-effective backbone for linking leaf and spine switches.
NVIDIA H100 Clusters (High-Speed Supercomputing)

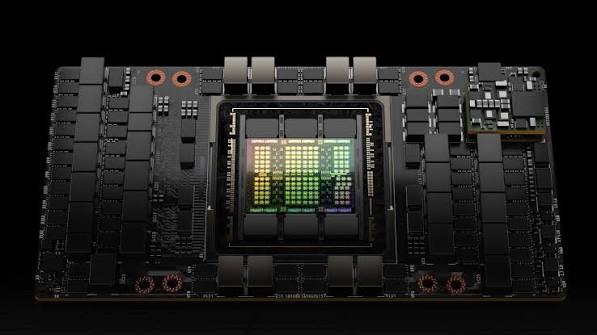

The introduction of the Hopper architecture shifted the paradigm entirely. Operating on InfiniBand NDR (400Gb/s per port) or 400G/800G Ethernet fabrics, H100 systems demand significantly higher bandwidth density. To support massive scale-out topologies, optical module design transitioned toward ultra-high-speed platforms like 800G OSFP transceivers, which deliver double the density of prior 400G solutions while maintaining optimal thermal and electrical performance.
Calculating Optical Module Quantities: A Mathematical Breakdown
A common question among IT directors and network engineers is: “How many optical modules do I actually need to deploy a cluster?” The answer depends on the cluster size, GPU count, and whether the network uses active optical cables (AOCs) or discrete transceivers with fiber patch cords.
The Port-to-Transceiver Ratio
In a transceiver-plus-cable architecture, every active link requires two optical modules (one at each end of the fiber run). For example, a spine-and-leaf InfiniBand architecture connecting hundreds of H100 nodes requires thousands of high-speed optical links.
For A100/200G Pods: Historical deployments often revealed a high ratio of optical components relative to compute nodes. Accounting for both computation and storage fabrics, calculations often showed a ratio of approximately 7 to 8 optical connections per GPU once storage networks, management fabrics, and leaf-spine uplinks were fully accounted for.
For H100/800G NDR Pods: In modern 800G NDR InfiniBand architectures, switches and ConnectX-7/BlueField-3 adapters are densely populated with high-speed ports. For instance, a standard multi-rack H100 deployment utilizing advanced 800G OSFP optics can require over a thousand high-speed modules just for the core spine-leaf switching fabric, translating to roughly 10 to 12 optical endpoints per compute tray depending on the oversubscription ratio.
Choosing the Right Optical Form Factors for AI Fabrics
Selecting appropriate optics involves balancing reach, cabling infrastructure, and power consumption.
Multimode Fiber (MMF) for Intra-Rack and Short Reach
For connections contained within the same row or adjacent racks (typically under 100 meters), multimode solutions remain popular due to lower transceiver costs.
In legacy clusters, 100G SR4 transceivers utilizing parallel multimode fiber (OM4/OM5) provide reliable, low-latency links between leaf switches and server network interface cards (NICs).
As data rates scale to 400G and 800G, equivalent multimode parallel optics (such as 400G SR8 or 800G SR8) continue this tradition, though single-mode fiber increasingly dominates ultra-dense multi-rack environments.
Single-Mode Fiber (SMF) and High-Speed Pluggables
For inter-rack connections and large-scale data center layouts spanning hundreds of meters, single-mode optics are mandatory.
High-density environments leverage 100G QSFP28 modules (such as LR4 variants) for longer 10km enterprise links.
Meanwhile, state-of-the-art AI clusters rely heavily on 800G OSFP modules (utilizing 2x400G or 8x100G electrical lanes with PAM4 modulation) to handle the massive east-west traffic generated by distributed LLM training workloads.
Best Practices for Designing Scalable AI Networks
Plan for Thermal and Power Budgets: 800G optical modules consume more electrical power and dissipate more heat than legacy 100G components. Ensure your data center cooling infrastructure (such as liquid cooling or high-airflow containment) can support densely populated switch chassis.
Prioritize Cable Management: High-density MPO/MTP cabling used with parallel optics requires strict bend-radius management. Utilize structured cable routing trays to prevent micro-bends that induce insertion loss and bit errors.
Validate Transceiver Compatibility: AI clusters demand zero packet loss. Always use pre-tested, fully compatible optical transceivers and cables coded specifically for your switch and GPU vendor hardware (such as NVIDIA/Mellanox-certified modules) to avoid link training failures.
Conclusion
Building an enterprise AI cluster requires meticulous physical layer planning. While older A100 architectures relied heavily on mature 100G QSFP28 and 100G SR4 connections to manage moderate data flows, modern H100 supercomputing fabrics demand cutting-edge infrastructure built around high-density 800G OSFP optical modules. By accurately calculating transceiver counts, balancing single-mode and multimode choices, and adhering to strict physical layer best practices, network architects can future-proof their AI infrastructure for the next generation of generative AI workloads.
